| 型號(hào) Model | 庫(kù)存 Stock | 尺寸Size (mm) | 刀片 Insert | 刀墊 Shim | 銷釘 Lock pin | 壓板 Clamp | 雙頭螺栓 Clamp screw | 扳手 Hex wrench | ||||||

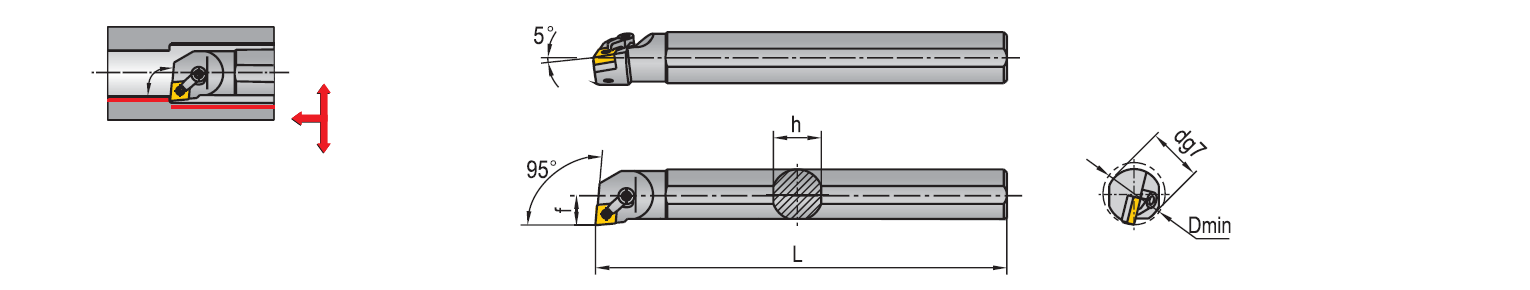

| 右刀 Right hand | 左刀 Left hand | R | L | d | f | L | h | Dmin | ||||||
| S25R-MCLNR12 S32S-MCLNR12 S40T-MCLNR12 S50W-MCLNR12 | S25R-MCLNL12 S32S-MCLNL12 S40T-MCLNL12 S50W-MCLNL12 | ● ● ○ ○ | ● ● ○ ○ | 25 32 40 50 | 17 22 27 35 | 200 250 300 450 | 23 30 37 47 | 32 40 50 63 | CN..1204.. | ‐ | NL-44 | CL-20 | XNS-47 | S1/8,S3/32 |
| ICSN-433 | NL-46 | XNS-48 | ||||||||||||
| S40T-MCLNR16 S50W-MCLNR16 | S40T-MCLNL16 S50W-MCLNL16 | ○ ○ | ○ ○ | 40 50 | 27 35 | 300 450 | 37 47 | 50 63 | CN..1606.. | ICSN-533 | NL-58 | CL-12 | XNS-59 | S5/32,S1/8 |
