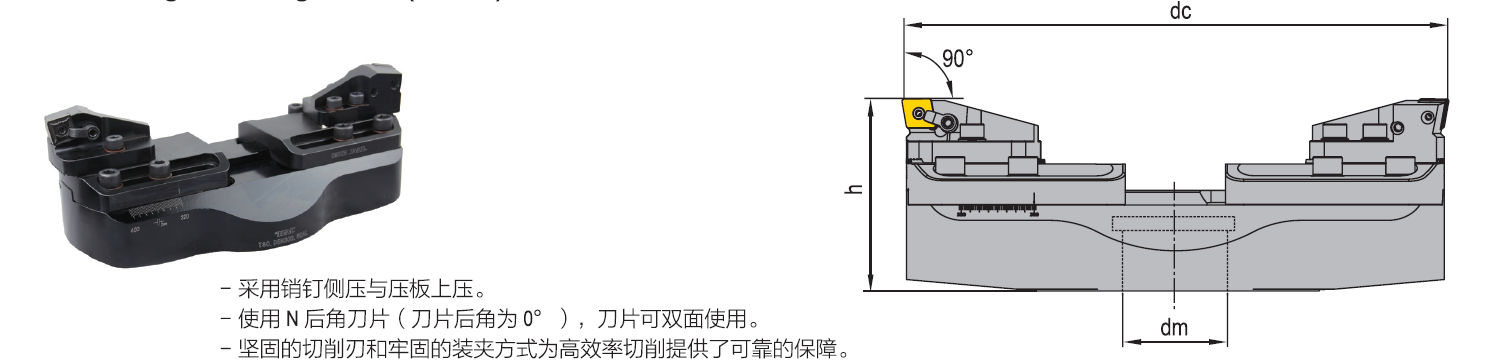

| 鏜孔尺寸dc Boring range | 組合型號 Model | 尺寸Size （mm） | * | * | * | 內(nèi)冷卻 Inner Cooling | * | |
| dm | h | 刀柄 Tool Holders | 橋體Crossbars | 鏜刀座 Slide insert holder | 重量 Weight（不含刀柄） | |||
| 150~200 | T90.RM150.CN16.40 | 40 | 95 | ..XMX40.. | CRB150 | MCN16.TS90 | Y | 4.1 |
| 200~250 | T90.RM200.CN16.40 | 40 | 95 | CRB200 | Y | 4.7 | ||
| 250~300 | T90.RM250.CN16.40 | 40 | 95 | CRB250 | Y | 5.3 | ||
| 300~380 | T90.RM300.CN16.60 | 60 | 105 | ..XMX60.. | CRB300 | — | 8 | |
| 380~460 | T90.RM380.CN16.60 | 60 | 105 | CRB380 | — | 9.1 | ||
| 460~540 | T90.RM460.CN16.60 | 60 | 115 | CRB460 | — | 11.9 | ||
| 540~620 | T90.RM540.CN16.60 | 60 | 115 | CRB540 | — | 13.4 | ||
| 620~700 | T90.RM620.CN16.60 | 60 | 115 | CRB620 | — | 15 | ||
| *刀片需單獨訂購。 O訂單生產(chǎn) *刀柄需單獨訂購，詳見B51頁 。 *交貨時 ，橋體與鏜刀座分開包裝。 | ||||||||
備件 | ||||||||
| * | * | * | * | * | * | * | ||
| 型號 Model | 庫存 | 滑座Slide base | 螺釘Screw | 墊圈Washer | 扳手Hex wrench | 微調(diào)組件Adjustable member | 扳手Hex wrench | |
| Stock | ||||||||
| CRB150 | ● | SDB50 | MS10030 | DT10 | S8 | ADJM05 | TS2.5 | |
| CRB200 | ● | |||||||
| CRB250 | ● | |||||||
| CRB300 | ● | SDB80 | ||||||
| CRB380 | ● | |||||||
| CRB460 | O | |||||||
| CRB540 | O | |||||||
| CRB620 | O | |||||||
| * | * | * | * | * | * | * | * | |
| 型號 Model | 庫存 | 螺釘Screw | 墊圈Washer | 扳手Hex wrench | 刀墊 Shim | 銷釘 Pin | 壓板 Clamp | 扳手 Hex wrench |
| Stock | ||||||||
| MCN16.TS90 | ? | MS08020 | DT08 | S6 | ICSN-533 | NL-58 | CL-9 | S5/32,S1/8 |
