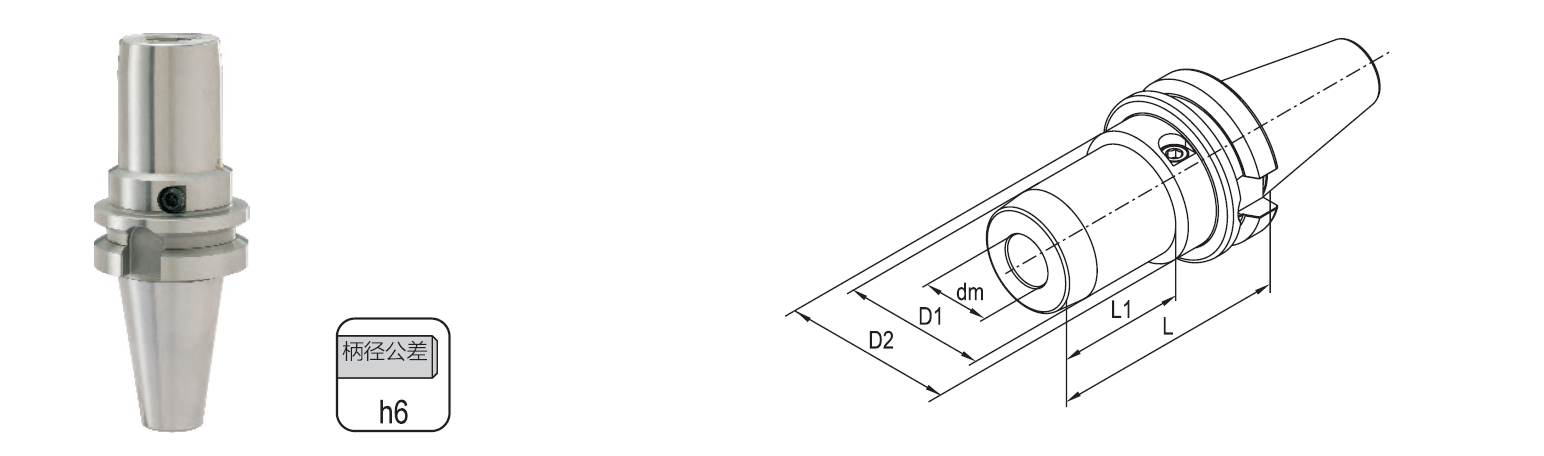

BT 液壓刀柄
型號(hào)
Model | 庫(kù)存
Stock |
| 尺寸Szie
（mm） | 備件Spare Parts | 卡簧
Collets |
|
| JIS B6339-AD | dm | D1 | D2 | L1 | L | 螺釘Screw |
|
| BT30-HC06-80 | 〇 | 30 | 06 | 28 | 50 | 33.5 | 80 | SO05014C | – |
| BT30-HC08-80 | 〇 | 30 | 08 | 30 | 50 | 33.5 | 80 | SO06014C | – |
| BT30-HC10-80 | 〇 | 30 | 10 | 32 | 50 | 35 | 80 | SO08014C | – |
| BT30-HC12-90 | ● | 30 | 12 | 35 | 50 | 44 | 90 | SO08014C | HC12 |
| BT30-HC14-95 | 〇 | 30 | 14 | 38 | 50 | 51 | 95 | SO08014C | – |
| BT30-HC16-95 | 〇 | 30 | 16 | 38 | 50 | 51 | 95 | SO08014C | – |
| BT30-HC20-95 | ● | 30 | 20 | 42 | 50 | 50 | 95 | SO08014C | HC20 |
|
|
|
|
|
|
|
|
|
|
| BT40-HC06-85 | 〇 | 40 | 06 | 28 | 50 | 33.5 | 80 | SO05014C | – |
| BT40-HC08-85 | 〇 | 40 | 08 | 30 | 50 | 33.5 | 80 | SO06014C | – |
| BT40-HC10-85 | ● | 40 | 10 | 32 | 50 | 35 | 80 | SO08014C | – |
| BT40-HC12-90 | ● | 40 | 12 | 35 | 50 | 44 | 90 | SO08014C | HC12 |
| BT40-HC14-95 | 〇 | 40 | 14 | 38 | 50 | 51 | 95 | SO08014C | – |
| BT40-HC16-95 | 〇 | 40 | 16 | 38 | 50 | 51 | 95 | SO08014C | – |
| BT40-HC20-95 | ● | 40 | 20 | 42 | 50 | 52 | 95 | SO08014C | HC20 |
| BT40-HC25-115 | 〇 | 40 | 25 | 57 | 70 | 63 | 115 | SO08014C |
|
| BT40-HC32-115 | 〇 | 40 | 32 | 64 | 70 | 65 | 115 | SO08014C | HC32 |
|
|
|
|
|
|
|
|
|
|
| BT50-HC06-95 | 〇 | 50 | 06 | 28 | 50 | 33.5 | 95 | SO05014C | – |
| BT50-HC08-95 | 〇 | 50 | 08 | 30 | 50 | 33.5 | 95 | SO06014C | – |
| BT50-HC10-95 | 〇 | 50 | 10 | 32 | 50 | 35 | 95 | SO08014C | – |
| BT50-HC12-100 | ● | 50 | 12 | 35 | 50 | 44 | 100 | SO08014C | HC12 |
| BT50-HC14-105 | 〇 | 50 | 14 | 38 | 50 | 51 | 105 | SO08014C | – |
| BT50-HC16-105 | 〇 | 50 | 16 | 38 | 50 | 51 | 105 | SO08014C | – |
| BT50-HC20-105 | ● | 50 | 20 | 42 | 50 | 52 | 105 | SO08014C | HC20 |
| BT50-HC25-120 | 〇 | 50 | 25 | 57 | 70 | 63 | 120 | SO08014C | – |
| BT50-HC32-120 | ● | 50 | 32 | 64 | 70 | 65 | 120 | SO08014C | HC32 |
