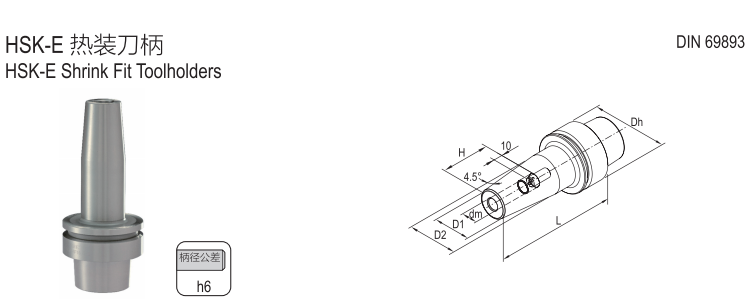

HSK-E 熱裝刀柄
型號
Model | 庫存
Stock |
| 尺寸Szie
（mm） | 備件Spare Parts |
|
| DIN69893 | Dh | dm | D1 | D2 | L | H | 螺釘Screw |
|
| HSK40E-SFX03-60 | ○ | HSK-E40 | 40 | 3 | 10 | - | 60 | - | - |
| HSK40E-SFX04-60 | ● | HSK-E40 | 40 | 4 | 10 | - | 60 | - | - |
| HSK40E-SFX05-60 | ○ | HSK-E40 | 40 | 5 | 10 | - | 60 | - | - |
| HSK40E-SF06-80 | ● | HSK-E40 | 40 | 6 | 21 | 27 | 80 | 36 | SO05014C |
| HSK40E-SF08-80 | ○ | HSK-E40 | 40 | 8 | 21 | 27 | 80 | 36 | SO06014C |
| HSK40E-SF10-80 | ○ | HSK-E40 | 40 | 10 | 24 | 32 | 80 | 42 | SO08014C |
| HSK40E-SF12-90 | ● | HSK-E40 | 40 | 12 | 24 | 32 | 90 | 47 | SO08014C |
| HSK40E-SF14-90 | ○ | HSK-E40 | 40 | 14 | 27 | 34 | 90 | 47 | SO08014C |
| HSK40E-SF16-90 | ○ | HSK-E40 | 40 | 16 | 27 | 34 | 90 | 50 | SO12014C |
| 附件Accessories | dm=3 | dm=4 | dm=5 | dm=6 | dm=8 | dm=10 | dm=12 | dm=14 | dm=16 |
|
| 扳手Hex Wrench | - | - | - | S2.5 | S3 | S4 | S4 | S4 | S6 |
|
| 附件Accessories | HXK-A63 | HSK-A100 |
|
| 冷卻液套管Coolant tubes | TU-HSK63 | TU-HSK100 |
|
| 扳手Coolant tube wrenches | W-HSK63 | W-HSK100 |
|
