AP11
型號
Model | 庫存
Stock | 尺寸Size
(mm) | 齒數(shù)
No.of teeth | 刀片
Insert | 螺釘
Screw | 扳手
Torx wrench | 重量
Weight |
|

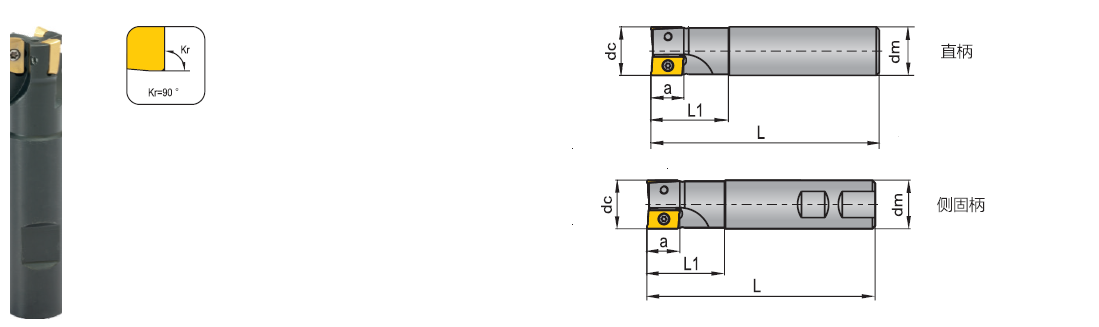

側(cè)固柄
Weldon | 直柄
Cylindrical | dc | dm | a | L1 | L |
|
| EM90-12AP11 |
| 〇
〇 | 12 | 12 | 11 | 20 | 70 | 1 | AP..1135.. | C025A07S | FT7 | 0.1 |
| EM90-12AP11.C |
| EM90-14AP11 |
| 〇
〇 | 14 | 16 | 11 | 25 | 80 | 1 | AP..1135.. | C025A07S | FT7 | 0.1 |
| EM90-14AP11.C |
| EM90-16AP11 |
| 〇
〇 | 16 | 16 | 11 | 30 | 80 | 2 | AP..1135.. | C025A07S | FT7 | 0.1 |
| EM90-16AP11.C |
| EM90-20AP11 |
| 〇
〇 | 20 | 20 | 11 | 30 | 90 | 2 | AP..1135.. | C025A07S | FT7 | 0.4 |
| EM90-20AP11.C |
| EM90-25AP11 |
| 〇
〇 | 25 | 25 | 11 | 30 | 100 | 3 | AP..1135.. | C025A07S | FT7 | 0.5 |
| EM90-25AP11.C |
| EM90-30AP11 |
| 〇
〇 | 30 | 25 | 11 | 30 | 100 | 3 | AP..1135.. | C025A07S | FT7 | 0.5 |
| EM90-30AP11.C |
| EM90-32AP11 |
| 〇
〇 | 32 | 32 | 11 | 30 | 110 | 4 | AP..1135.. | C025A07S | FT7 | 0.7 |
| EM90-32AP11.C |
| EM90-40AP11 |
| 〇
〇 | 40 | 32 | 11 | 30 | 110 | 5 | AP..1135.. | C025A07S | FT7 | 0.8 |
| EM90-40AP11.C |
圖例
Diagram | 型號
Model | d | L | S | α | d1 | l1 | r | 刀片材質(zhì)
Grade | 庫存
Stock | 適用加工材料
Application |
|
|
| APMT1135PDER-EM | 6.16 | 11 | 3.5 | 11° | 2.8 | 1.3 | 0.8 | EP2220 | ? | 鋼
Steel |
| APMT1135PDER-EM | 6.16 | 11 | 3.5 | 11° | 2.8 | 1.3 | 0.8 | EP3215 | ? | 鑄鐵
Cast iron |
