AP10N
型號
Model | 庫存
Stock | 尺寸Size
(mm) | 齒數
No.of teeth | 刀片
Insert | 螺釘
Screw | 扳手
Torx wrench | 重量
Weight |
|

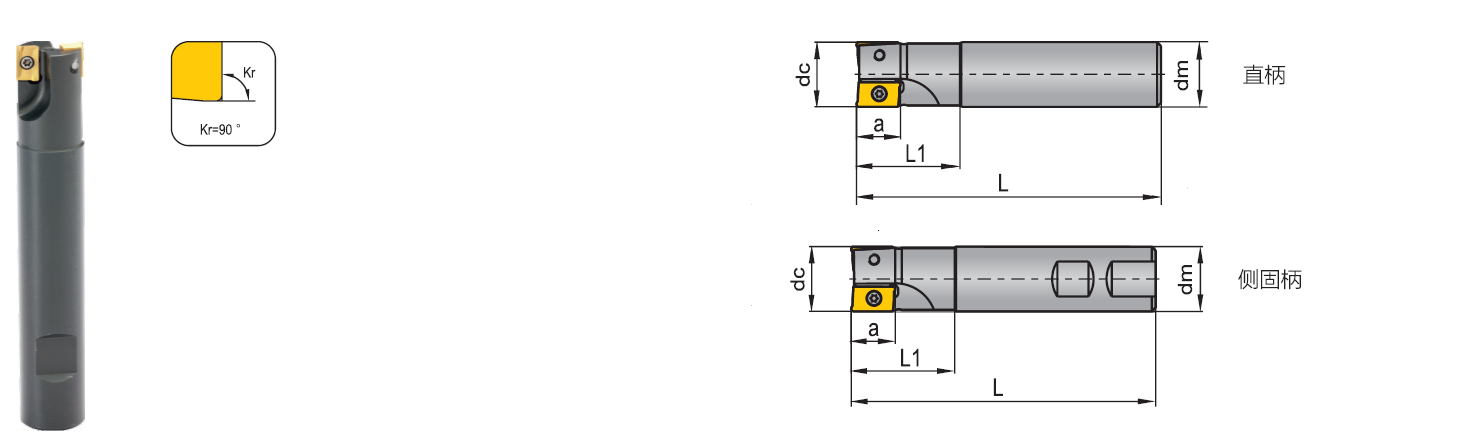

側固柄
Weldon | 直柄
Cylindrical | dc | dm | a | L1 | L |
|
| EM90-12AP10N |
| 〇
● | 12 | 12 | 10 | 25 | 80 | 1 | AP..1003.. | C025A07S | FT7 | 0.1 |
| EM90-12AP10N.C |
| EM90-14AP10N |
| 〇 〇
| 14 | 16 | 10 | 30 | 80 | 1 | AP..1003.. | C025A07S | FT7 | 0.1 |
| EM90-14AP10N.C |
| EM90-16AP10N |
| ● ●
| 16 | 16 | 10 | 30 | 80 | 2 | AP..1003.. | C025A07S | FT7 | 0.1 |
| EM90-16AP10N.C |
| EM90-20AP10N |
| ● ●
| 20 | 20 | 10 | 30 | 90 | 2 | AP..1003.. | C025A07S | FT7 | 0.4 |
| EM90-20AP10N.C |
| EM90-25AP10N |
| 〇
●
| 25 | 25 | 10 | 30 | 100 | 3 | AP..1003.. | C025A07S | FT7 | 0.5 |
| EM90-25AP10N.C |
| EM90-30AP10N |
| 〇
●
| 30 | 25 | 10 | 30 | 100 | 3 | AP..1003.. | C025A07S | FT7 | 0.5 |
| EM90-30AP10N.C |
| EM90-32AP10N |
| 〇
〇
| 32 | 32 | 10 | 30 | 110 | 4 | AP..1003.. | C025A07S | FT7 | 0.7 |
| EM90-32AP10N.C |
| EM90-40AP10N |
| 〇
〇
| 40 | 32 | 10 | 35 | 110 | 5 | AP..1003.. | C025A07S | FT7 | 0.8 |
| EM90-40AP10N.C |
|
圖例
Diagram | 型號
Model | d | L | S | α | d1 | l1 | r | 刀片材質
Grade | 庫存
Stock | 適用加工材料
Application |
|
|
| APKT1003PDTR | 6.77 | 10 | 3.5 | 11° | 2.8 | 0.9 | 0.8 | EY1220 | ? | 鋼
Steel | 不銹鋼
Stainless steel | 鑄鐵
Cast iron |
